Wet Sounds™ Hydro-Tech™ X (HTX) Series Amplifier. Wet Sounds represents the ultimate in High-Performance Marine Audio. Wet Sounds HTX Series Marine Amplifiers are designed to be a complete solution for every type of extreme marine application. HTX amplifiers use superior performance circuitry by utilizing Class D Power Supplies. These amplifiers have extreme power output packed inside a small chassis, thermal overload protection, flexible crossovers, extended inputs. HTX amplifiers are a well-balanced match for all of the Wet Sounds™ products.

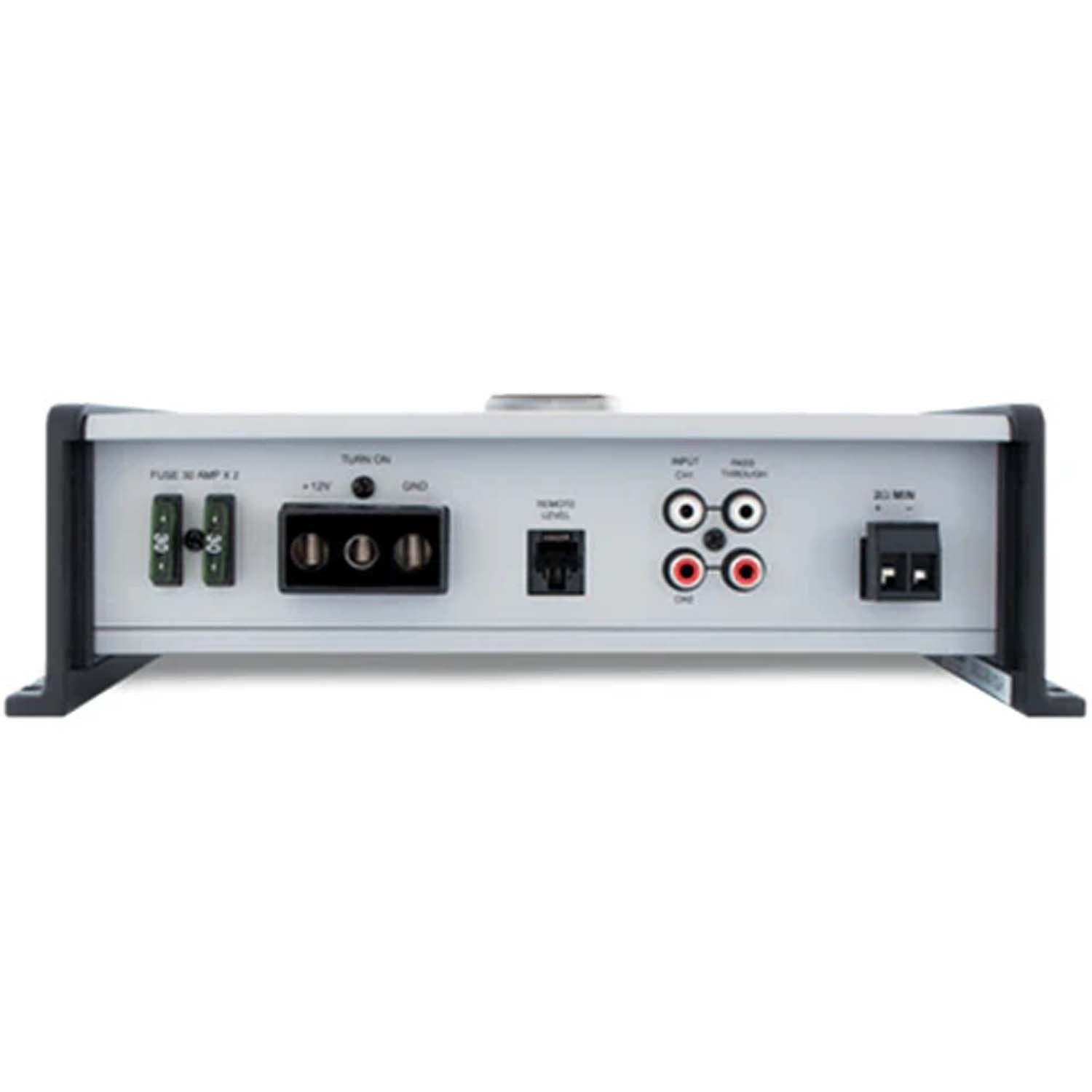

- Removeable Wire Plugs
- Class D Amplifier
- Conformal Coated PCB
- Completely Sealed Salt Water Compliant High Mass Heat Sink
- Stainless Steel Hardware
- Microprocessor Controlled

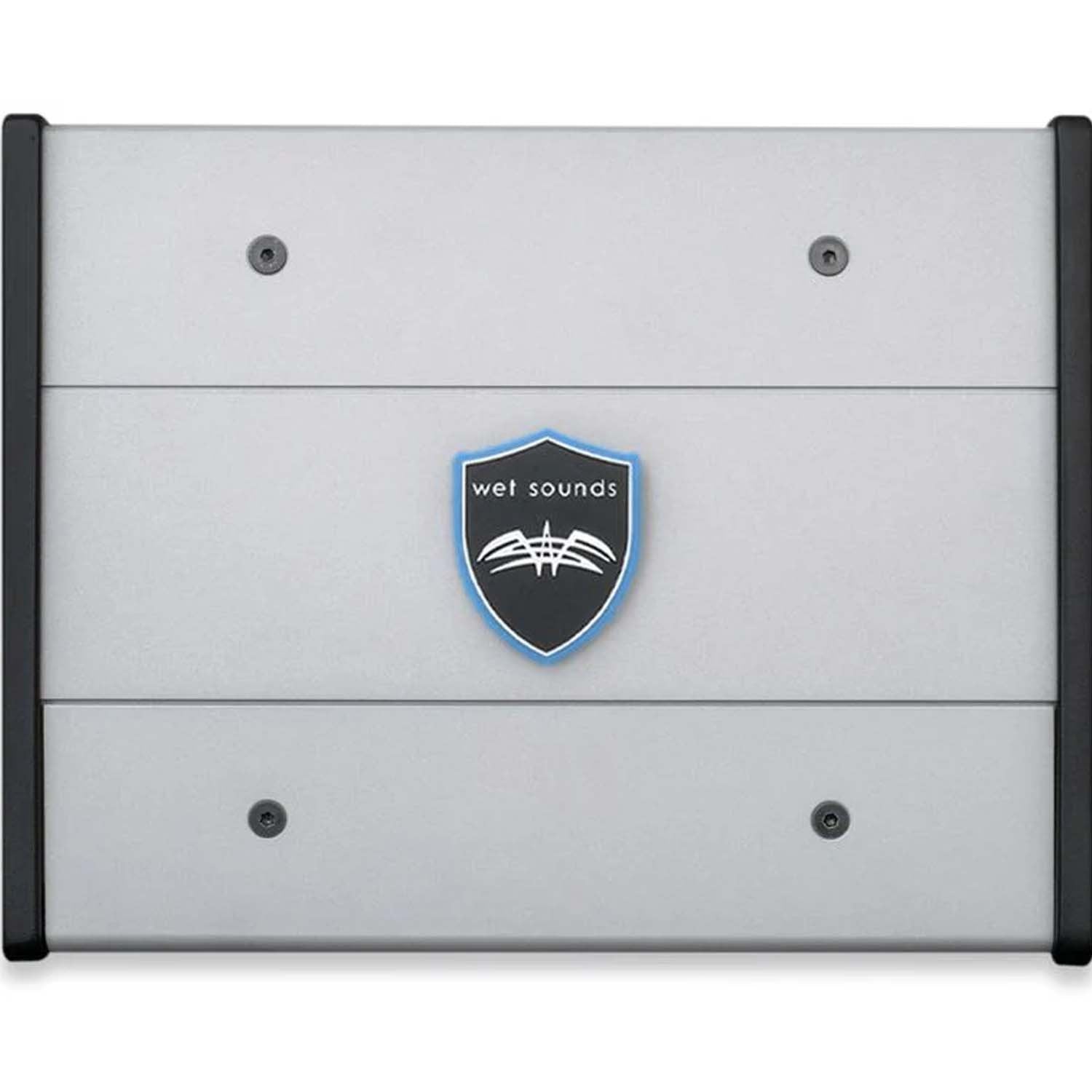

- Back Lit Logo Badge Horizontal or Vertical Placement
- Wet Sounds™ Extensive Crossover Network
Description
- RMS Power @ 4 ohm Mono 330 x 1 watts RMS @ < 1.0% THD
- RMS Power @ 2 ohm Mono 650 x 1 watts RMS @ < 1.0% THD
- Input Sensitivity Variable from 0.2V to 6.0V
- Frequency Response -3dB 10Hz-150Hz
- Bass Boost 0db -12db @ 45Hz
- Crossover Range Low Pass 50Hz - 150Hz 12dB/Octav
- Crossover Range Subsonic Filter 10Hz - 50Hz 12dB/Octav
- Remote Attenuation +0.7 - -29dB
- S/N Ratio (Awtg)
- >59dB (1 watt 4 Ohm)
- >92dB (125 watts 4 Ohm)
Note: All specifications are for each HTX1
