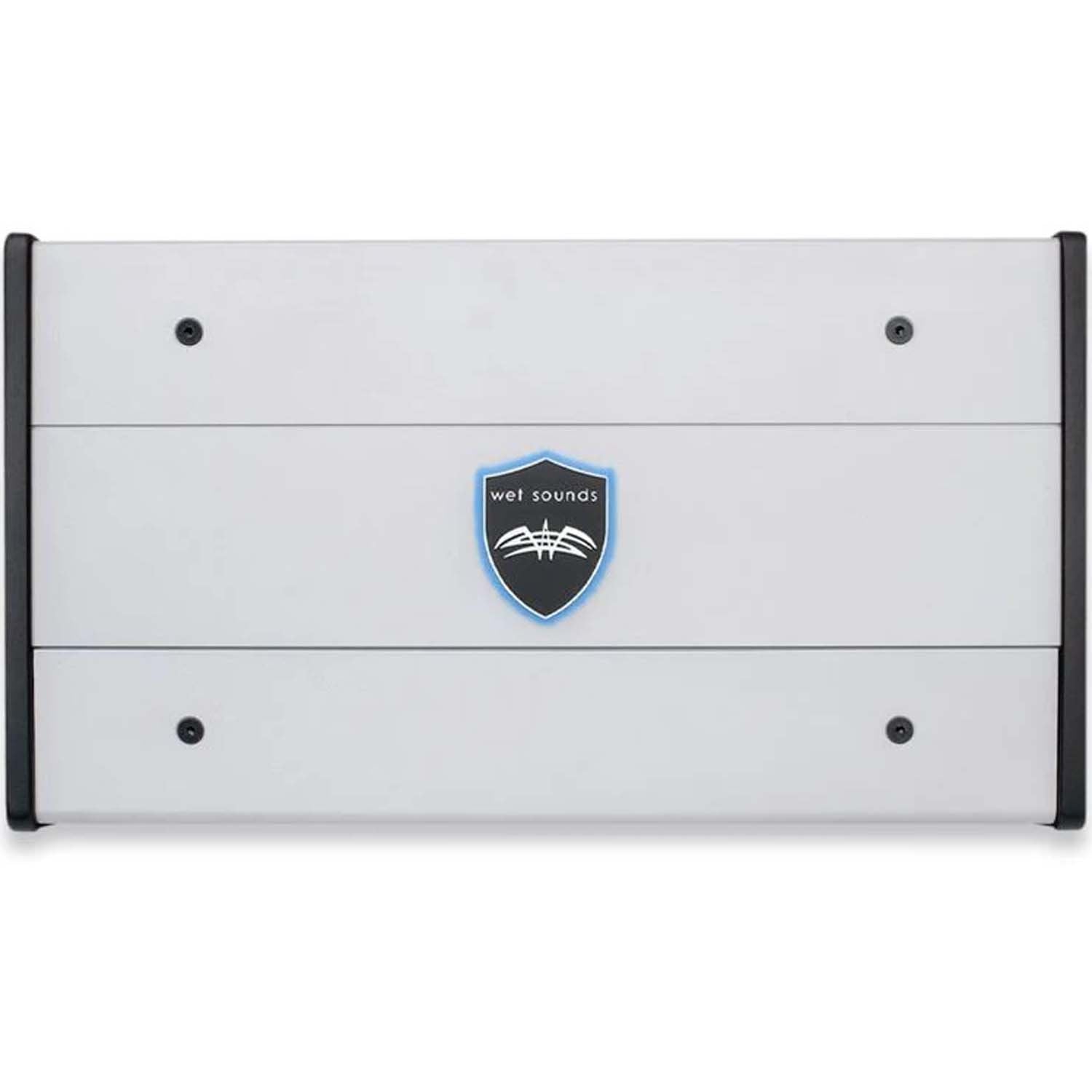

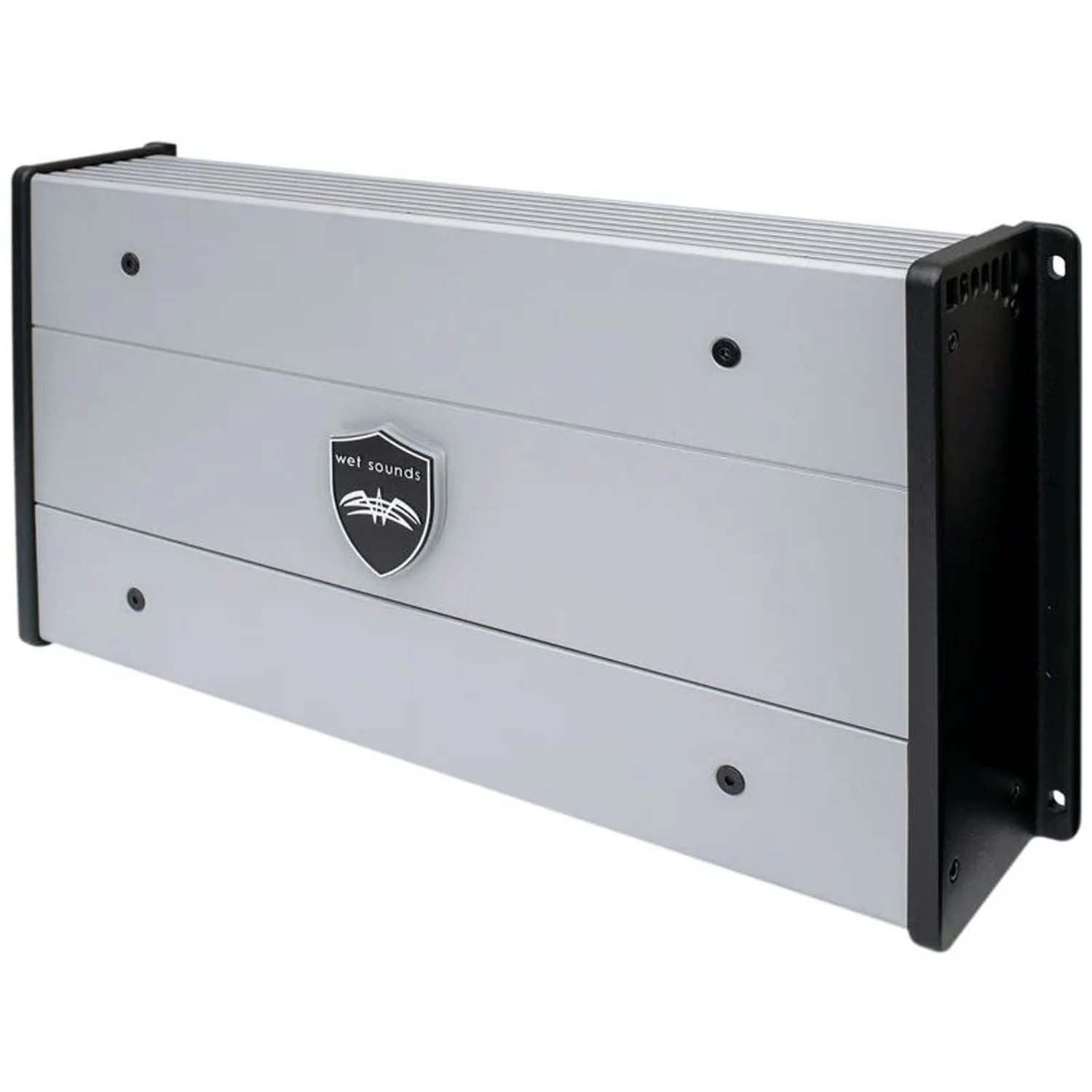

Wet Soundsâ„¢ Hydro-Techâ„¢ X (HTX) Series Amplifier. Wet Sounds represents the ultimate in High-Performance Marine Audio. Wet Sounds HTX Series Marine Amplifiers are designed to be a complete solution for every type of extreme marine application. HTX amplifiers use superior performance circuitry by utilizing Class D Power Supplies. These amplifiers have extreme power output packed inside a small chassis thermal overload protection flexible crossovers extended inputs. HTX amplifiers are a well-balanced match for all of the Wet Soundsâ„¢ products.

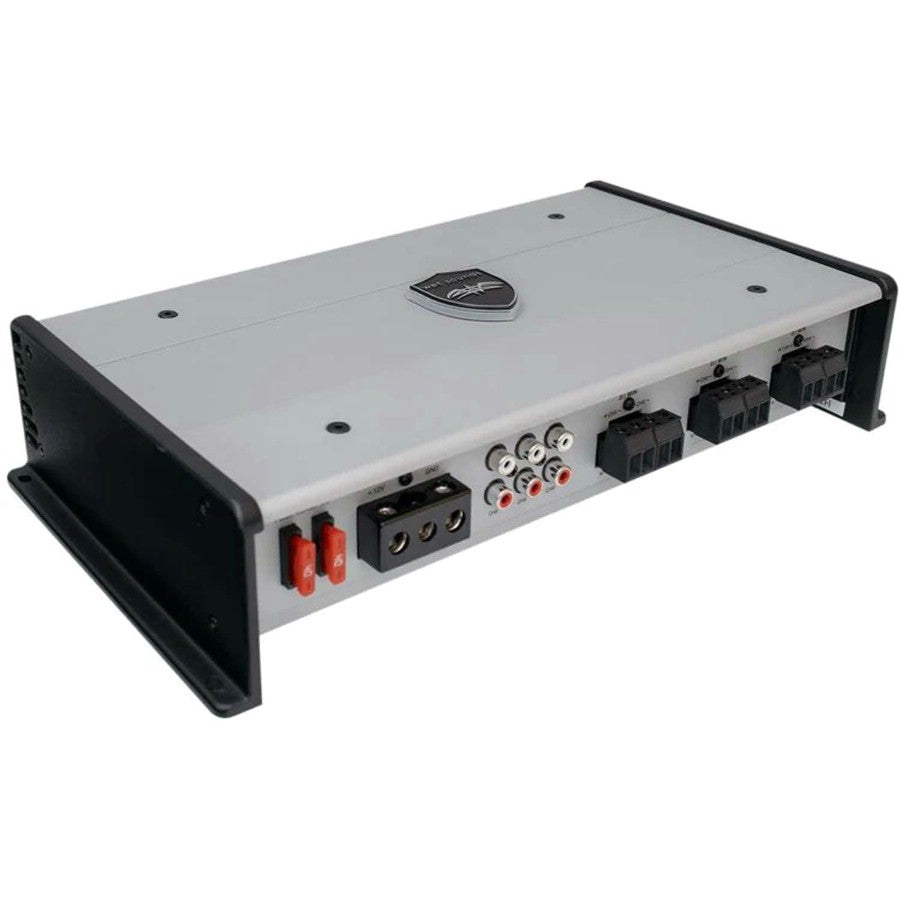

• Removeable Wire Plugs


• Class D Amplifier


• Conformal Coated PCB


• Completely Sealed Salt Water Compliant High Mass Heat Sink


• Stainless Steel Hardware


• Microprocessor Controlled


• Back Lit Logo Badge Horizontal or Vertical Placement


• Wet Soundsâ„¢ Extensive Crossover Network



Description

• RMS Power @ 4 ohm Stereo 100 x 6 watts RMS @ < 1.0% THD


• RMS Power @ 2 ohm Stereo 150 x 6 watts RMS @ < 1.0% THD


• RMS Power @ 4 ohm Mono 300 x 3 watts RMS @ < 1.0% THD


• Input Sensitivity Variable from 0.2V to 6.1V


• Frequency Response -3dB 7Hz-33Hz


• Bass Boost 0db -12db @ 45Hz


• Crossover Range Low Pass 50Hz - 150Hz 12dB/Octav


• Crossover Range Subsonic Filter 10Hz - 50Hz 12dB/Octav


• Separation >52dB


• S/N Ratio (Awtg)




• >62dB (1 watt 4 Ohm)


• >85dB (125 watts 4 Ohm)

Note: All specifications are for each HTX6
