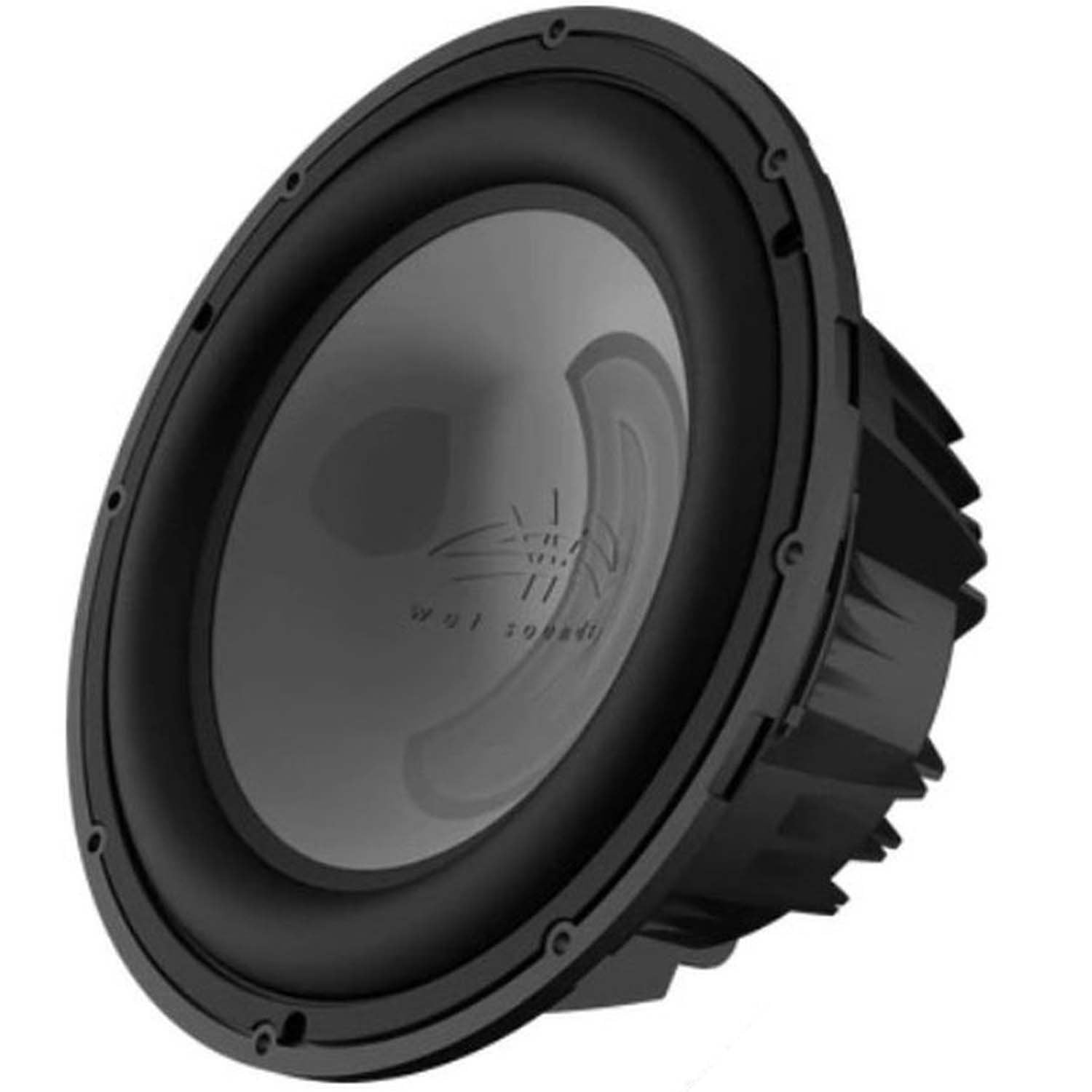

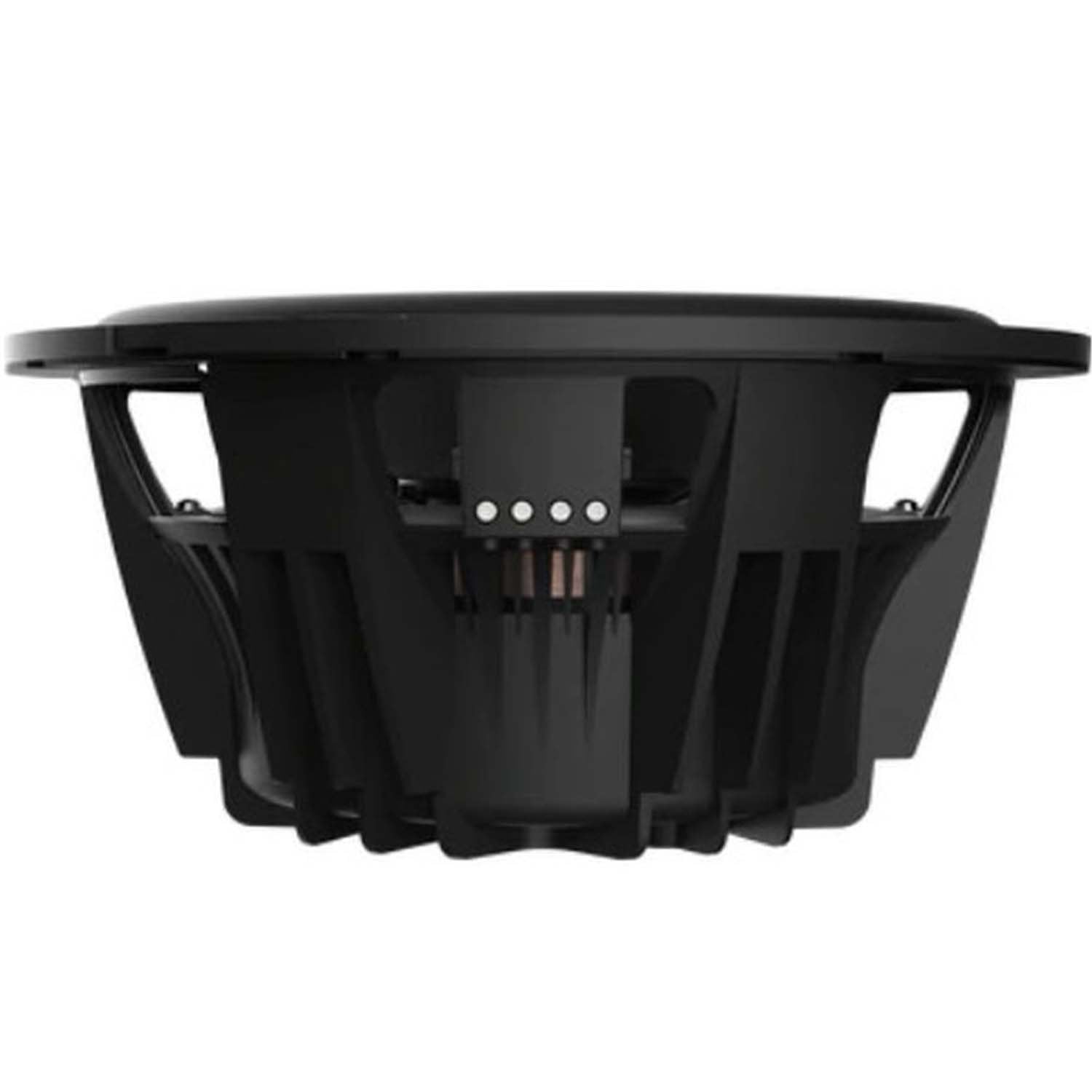

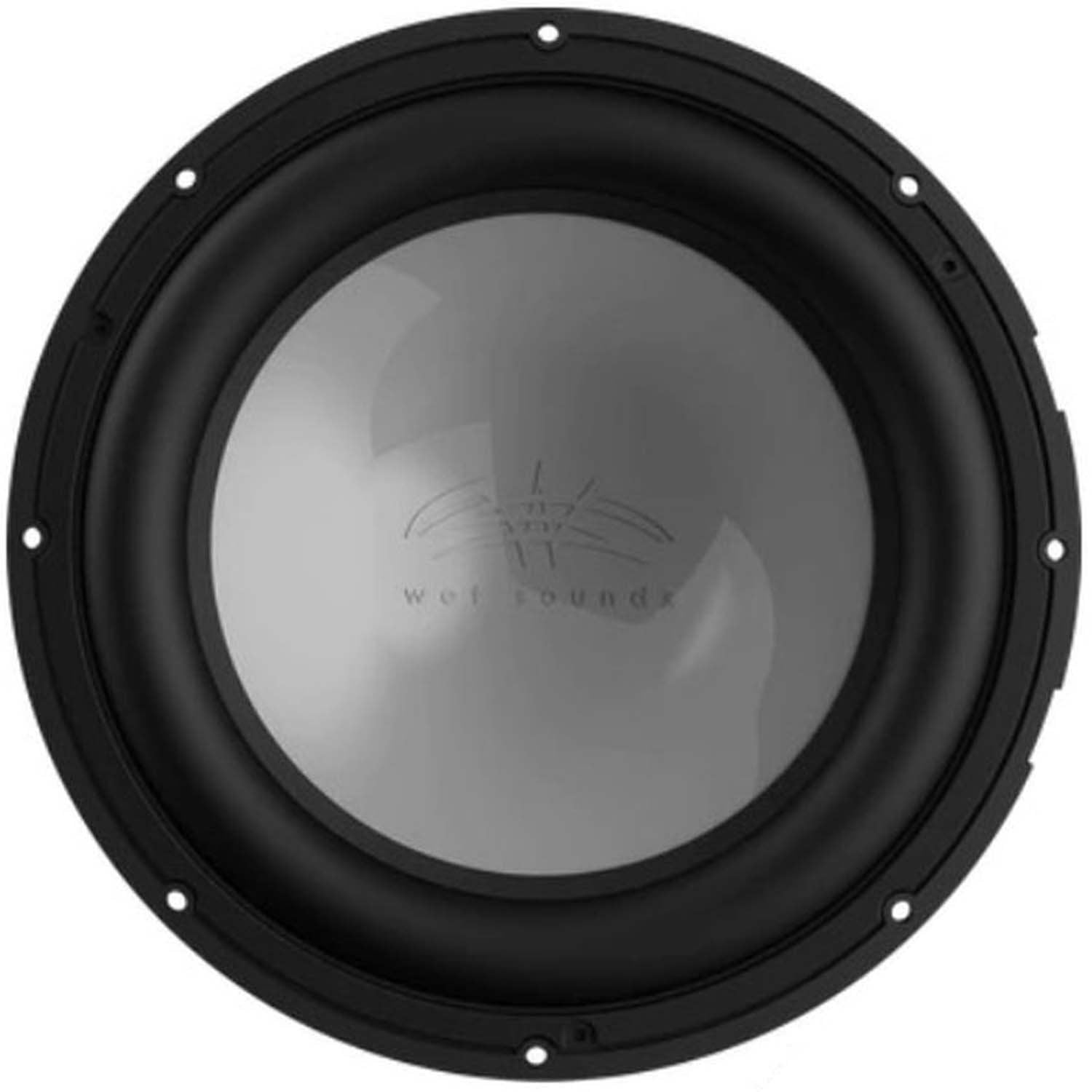

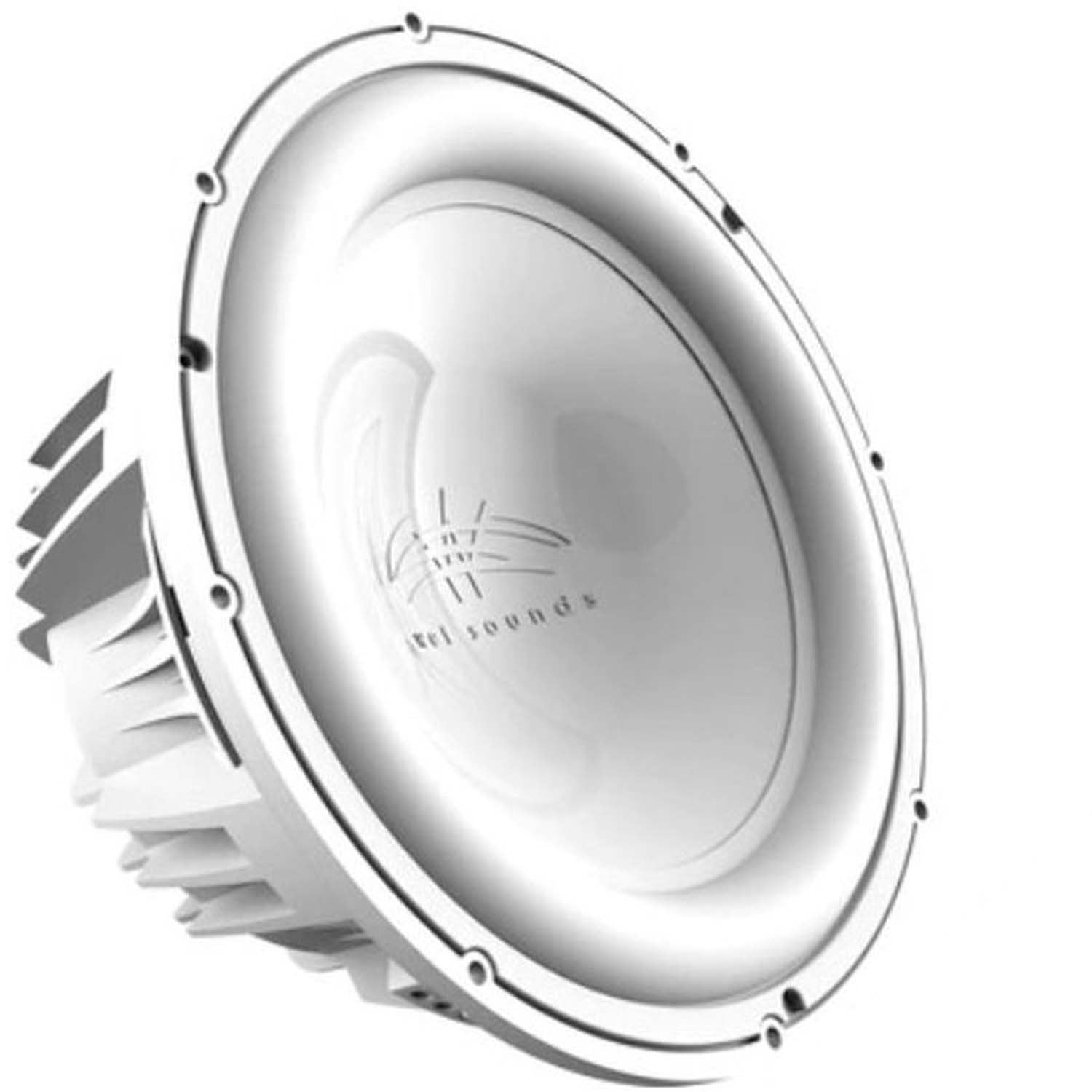

Free Air REVO subs are recommended primarily for Infinite Baffle (Free Air) applications where a dedicated subwoofer enclosure is not available or practical. Both 10” & 12” REVO FA subs are available in White or Black frames (Black frames use metallic grey cones). All REVO FA Subs are available in either single 2 Ohm or single 4 Ohm impedance.

• Free Air


• Thermoformed Santoprene Rubber Surround


• Powder Coated Cast Aluminum Frame


• Injection Molded Composite Cone



Description:

• Impedance: 4 ohms


• RMS Watts: 500


• PEAK Watts: 1000


• Frequency Response: 20Hz to 400HZ


• Sensitivity: 88 db at 1watt/1 meter


• Weight: 17.6 lbs (7.98kg)


• Diameter: 12.6 inches (320.04mm)


• Mounting Depth: 4.92 inches (124.96mm)


• Hole Cut Out: 11.26 inches (286.00mm)


• Vented Enclosure: 1.7 cu ft (Optimum: Tuned at 41 Hz)


• Box Specs Optimized for Infinite Baffle (Free Air) applications or 1.3 cu ft sealed enclosure

Note: All specifications are for each REVO-12FA
