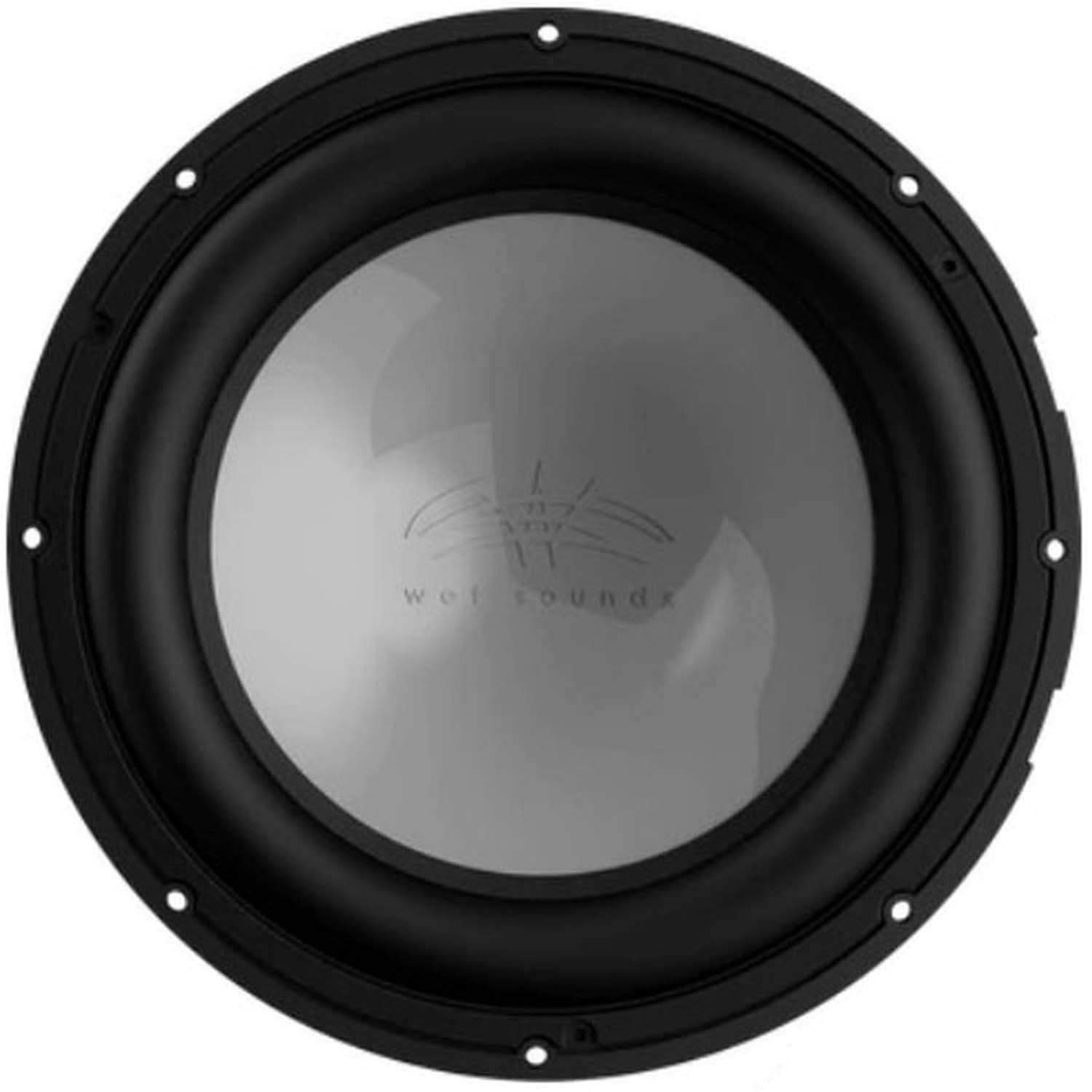

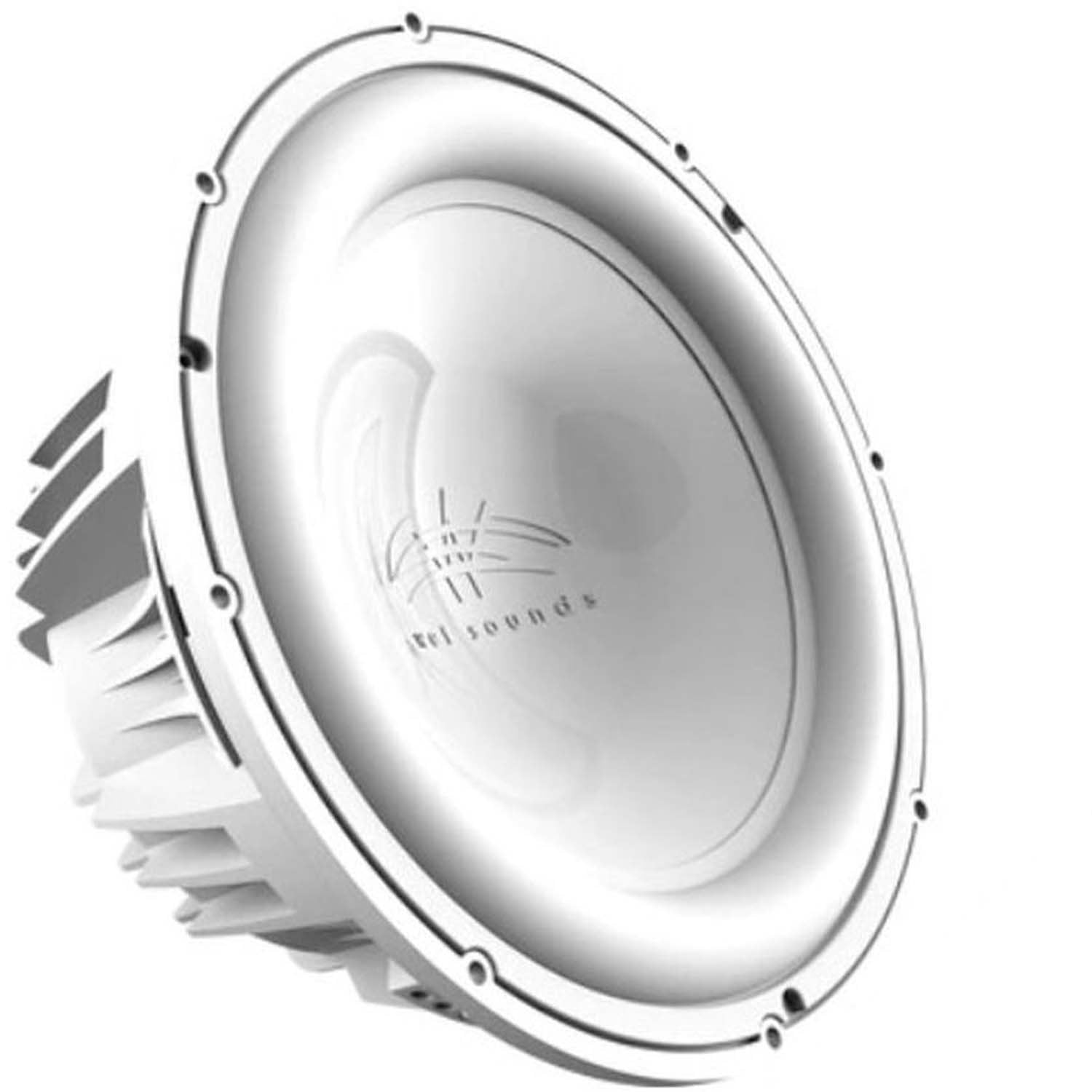

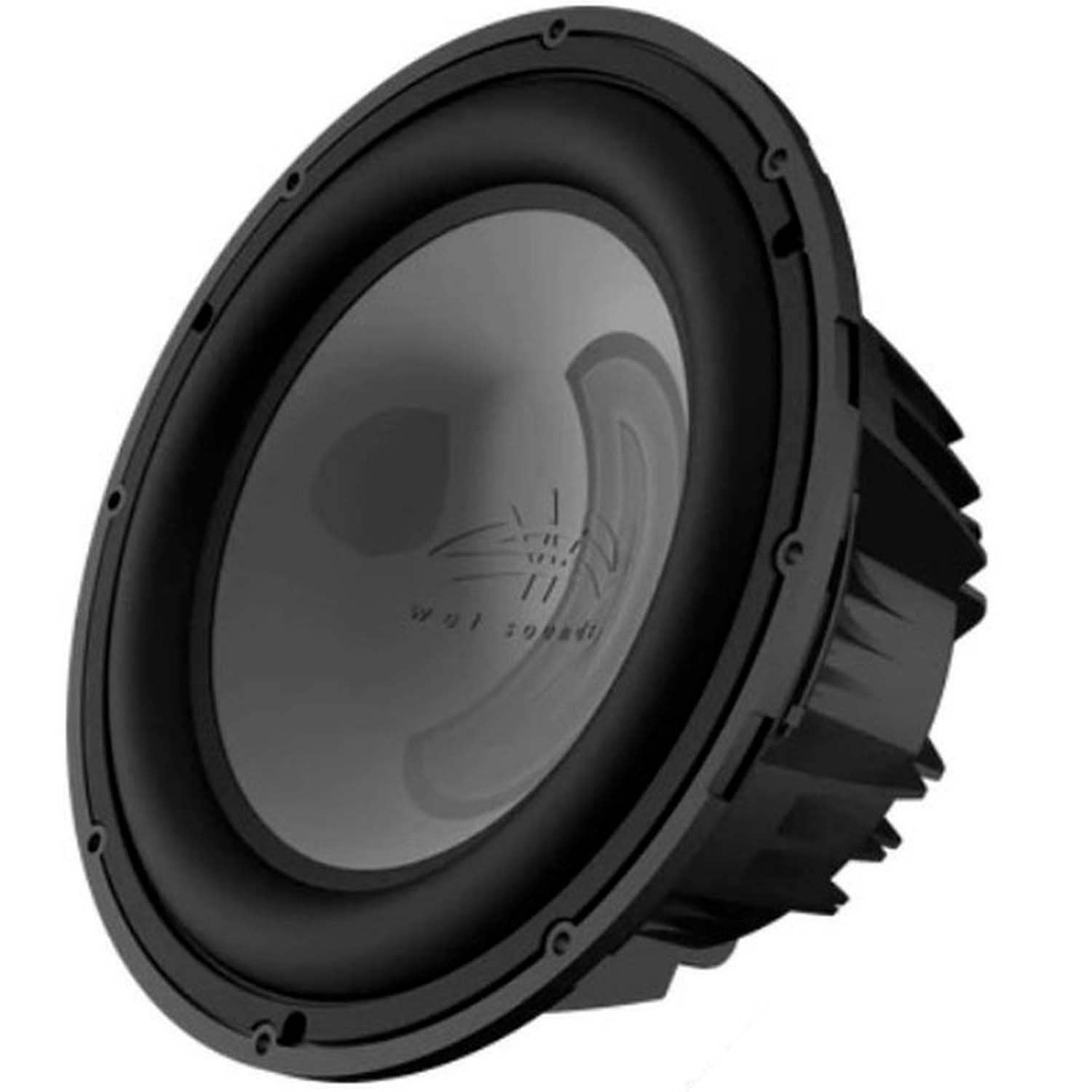

High Power REVO subs are recommended for applications where there is adequate room for a specifically designed sealed or ported subwoofer enclosure.  Full specifications to design enclosures for REVO HP  Subs are available at www.wetsounds.com. Both 10” & 12” REVO HP Subs are available in Black frames (with metallic grey cones) & single 4 Ohm impedance.

• High Power


• Thermoformed Santoprene Rubber Surround


• Powder Coated Cast Aluminum Frame


• Injection Molded Composite Cone



Description:

• Impedance: 4 ohms


• RMS Watts: 500


• PEAK Watts: 1000


• Frequency Response: 20Hz to 400HZ


• Sensitivity: 88 db at 1watt/1 meter


• Weight: 17.6 lbs (7.98 kg)


• Diameter: 12.6 inches w/grill (320.04 mm)


• Mounting Depth: 4.92 inches (124.96 mm)


• Hole Cut Out: 11.26 inches (286.0 mm)


• Box Specs Min 1.1 cu ft sealed enclosure or 1.7 cu ft ported

Note: All specifications are for each REVO-12HP
